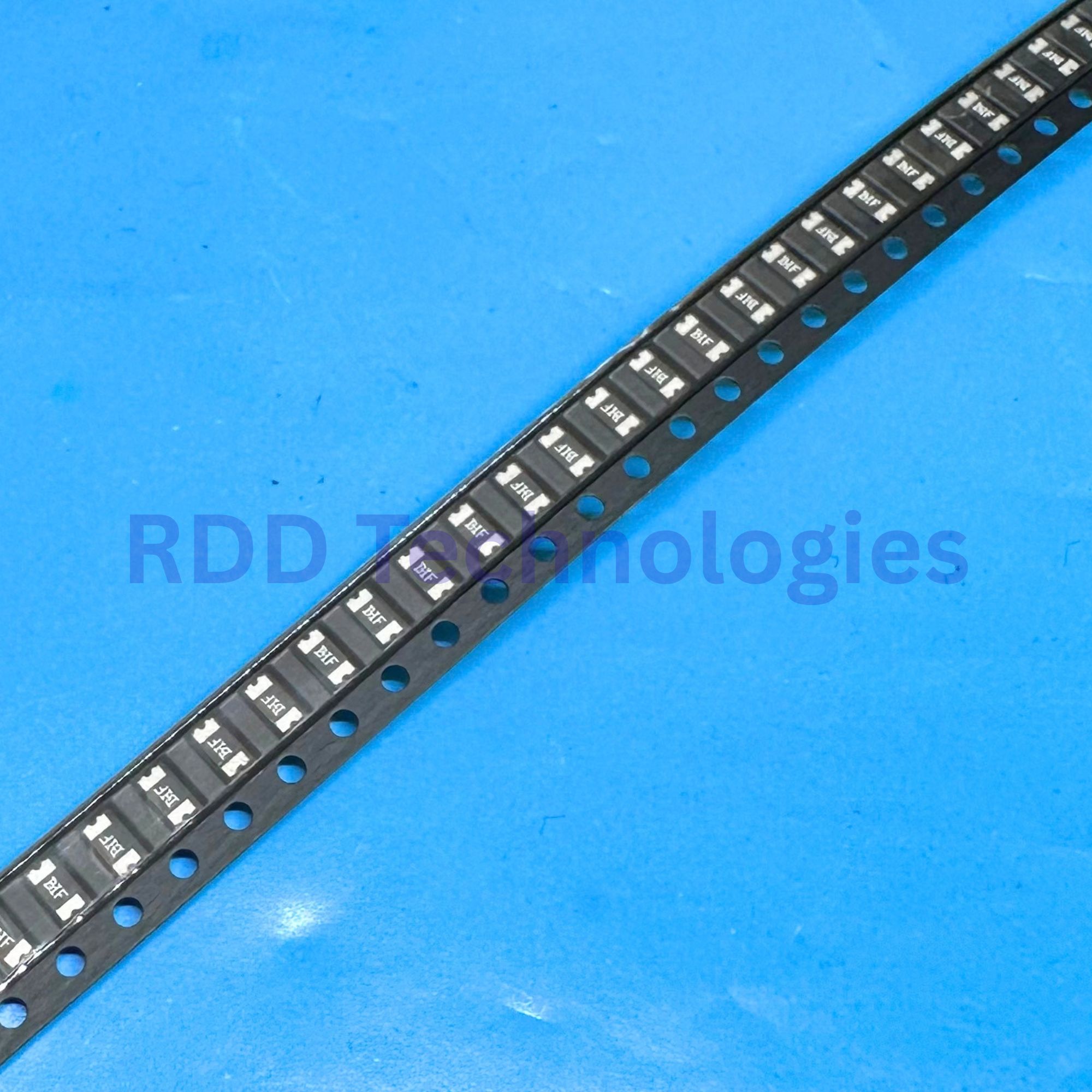

SMD RESETTABLE FUSE 1206 6V 500mA BHFUSE BSMD1206-050-6V
Rp2.000
PTC RESET FUSE 6V 500mA 1206
| Manufacturer | BHFUSE |
| Packaging | 1206 |
| Operating Temperature | -40℃~+85℃ |
| Voltage – Max | 6V |
| Hold Current | 500mA |
| Current – Max | 100A |
| Power Dissipation | 600mW |
| Trip Current | 1A |
| Height | 1mm |
| Length | 3.6mm |
| Width | 1.9mm |
| Time to Trip(Max) | 100ms |
| Resistance @ 25℃ | 150mΩ |
| Resistance – Post Trip (R1) (Max) | 700mΩ |
