| RoHS: | Yes |
| Number of Input Lines: | 8 Input |
| Number of Output Lines: | 8 Output |
| Polarity: | Non-Inverting |
| Supply Voltage – Max: | 5.25 V |
| Supply Voltage – Min: | 4.75 V |
| Maximum Operating Temperature: | + 70 C |
| Mounting Style: | Through Hole |
| Package/Case: | PDIP-20 |
| Function: | Buffer/Line Driver |
| Height: | 4.57 mm |
| High Level Output Current: | – 15 mA |
| Input Signal Type: | Single-Ended |
| Length: | 24.33 mm |
| Logic Type: | Bipolar |
| Low Level Output Current: | 24 mA |
| Minimum Operating Temperature: | 0 C |
| Number of Channels: | 8 |
| Operating Supply Current: | 46 uA |
| Operating Supply Voltage: | 5 V |
| Operating Temperature Range: | 0 C to + 70 C |
| Output Type: | 3-State |
| Propagation Delay Time: | 18 ns at 5 V |
| Quiescent Current: | 27 mA |
| Supply Current – Max: | 46000 uA |
| Width: | 6.35 mm |
| Unit Weight: | 1.199 g |

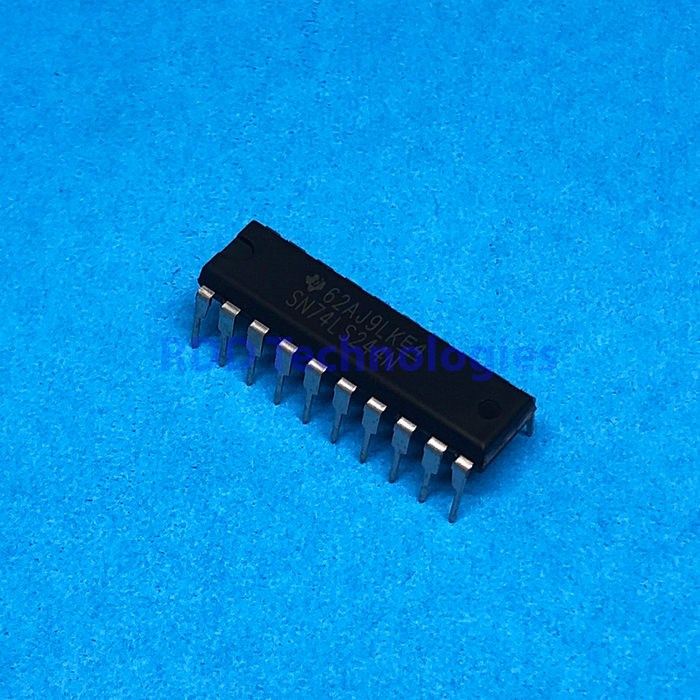

SN74LS244N TI DIP20
Rp12.500
SN74LS244N
Buffers & Line Drivers Tri-State Octal
Stok 50
SKU: 3001107-L47.40
Kategori: Uncategorized
