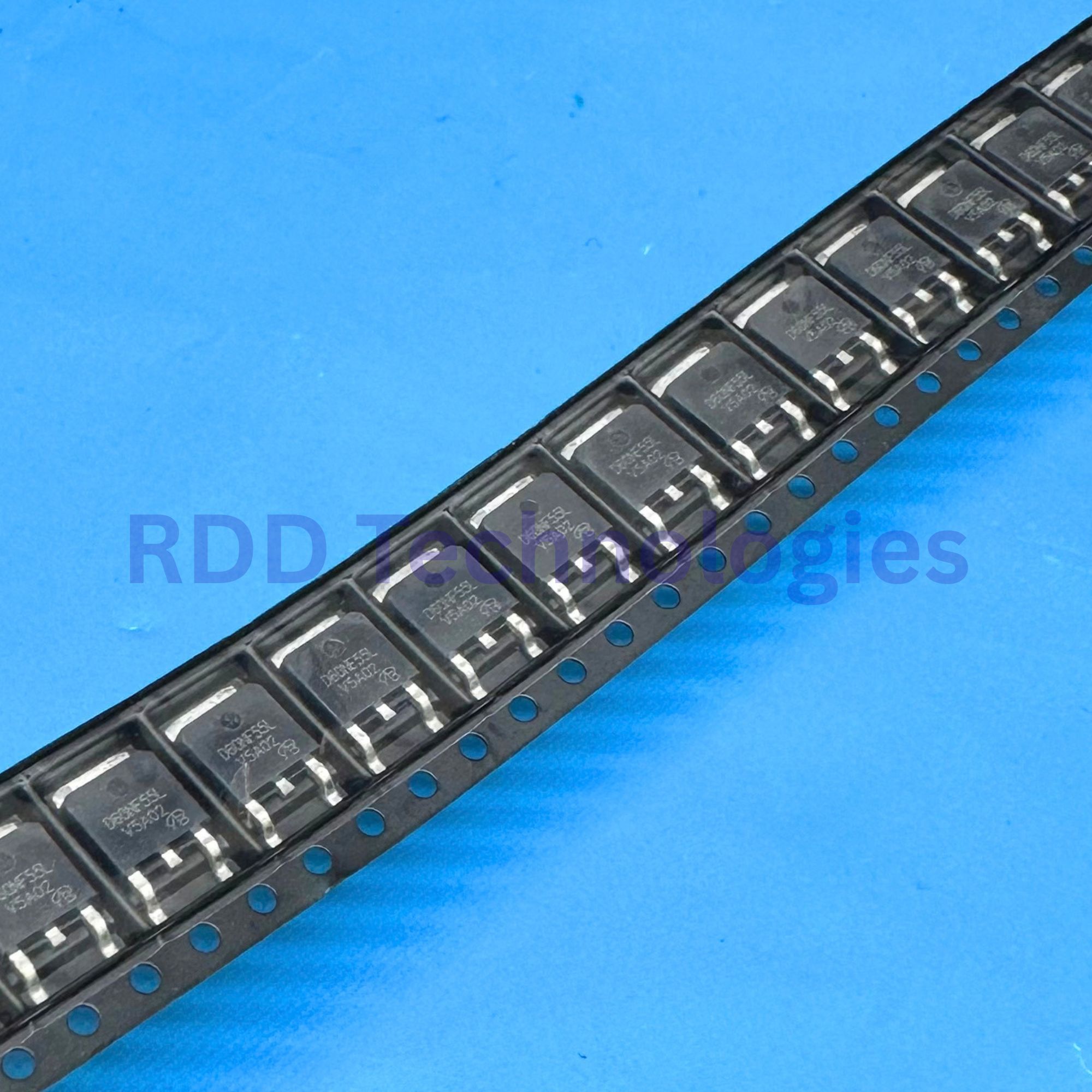

STD60NF55LT4 ST TO-252-3 N-channel 55V 60A
Rp25.000
MOSFETs N-Ch 55 Volt 60 Amp
| RoHS: | Yes |
| Technology: | Si |
| Mounting Style: | SMD/SMT |
| Package/Case: | DPAK-3 (TO-252-3) |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vds – Drain-Source Breakdown Voltage: | 55 V |
| Id – Continuous Drain Current: | 60 A |
| Rds On – Drain-Source Resistance: | 14 mOhms |
| Vgs – Gate-Source Voltage: | – 15 V, 15 V |
| Vgs th – Gate-Source Threshold Voltage: | 1 V |
| Qg – Gate Charge: | 56 nC |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 175 C |
| Pd – Power Dissipation: | 110 W |
| Channel Mode: | Enhancement |
| Brand: | STMicroelectronics |
| Configuration: | Single |
| Fall Time: | 35 ns |
| Forward Transconductance – Min: | 35 S |
| Rise Time: | 180 ns |
| Transistor Type: | 1 N-Channel |
| Typical Turn-Off Delay Time: | 80 ns |
| Typical Turn-On Delay Time: | 30 ns |
| Unit Weight: | 330 mg |
