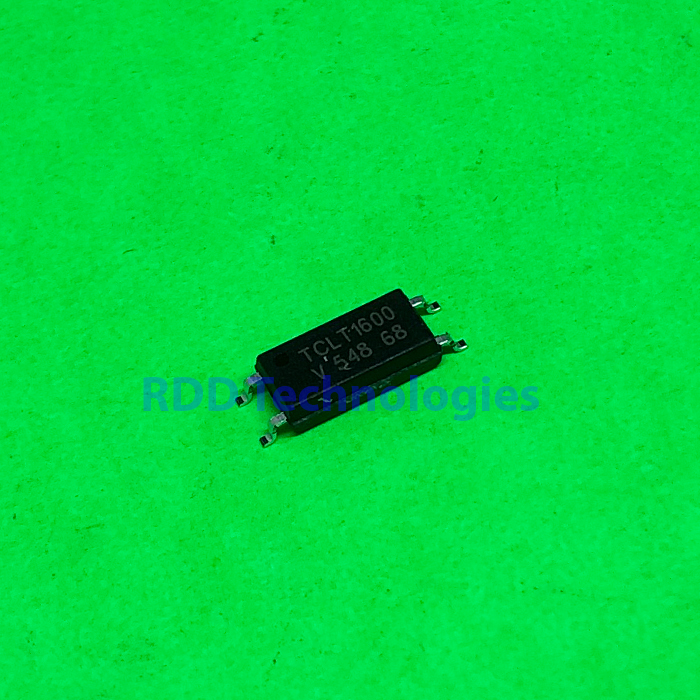

TCLT1600 VISHAY SOP-4
Rp15.000
Transistor Output Optocouplers Phototransistor Out Single CTR 80-300%
Stok 131
| RoHS: | Yes |
| Mounting Style: | SMD/SMT |
| Package/Case: | SOP-4 |
| Number of Channels: | 1 Channel |
| Isolation Voltage: | 5000 Vrms |
| Output Type: | NPN Phototransistor |
| Current Transfer Ratio – Min: | 80% |
| Current Transfer Ratio – Max: | 300% |
| If – Forward Current: | 60 mA |
| Vf – Forward Voltage: | 1.6 V |
| Maximum Collector Emitter Voltage: | 70 V |
| Maximum Collector Current: | 50 mA |
| Maximum Collector Emitter Saturation Voltage: | 300 mV |
| Rise Time: | 3 us |
| Fall Time: | 4.7 us |
| Vr – Reverse Voltage: | 6 V |
| Pd – Power Dissipation: | 250 mW |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 100 C |
| Brand: | Vishay Semiconductors |
| Configuration: | 1 Channel |
| Current Transfer Ratio: | 80% |
| Unit Weight: | 80 mg |
