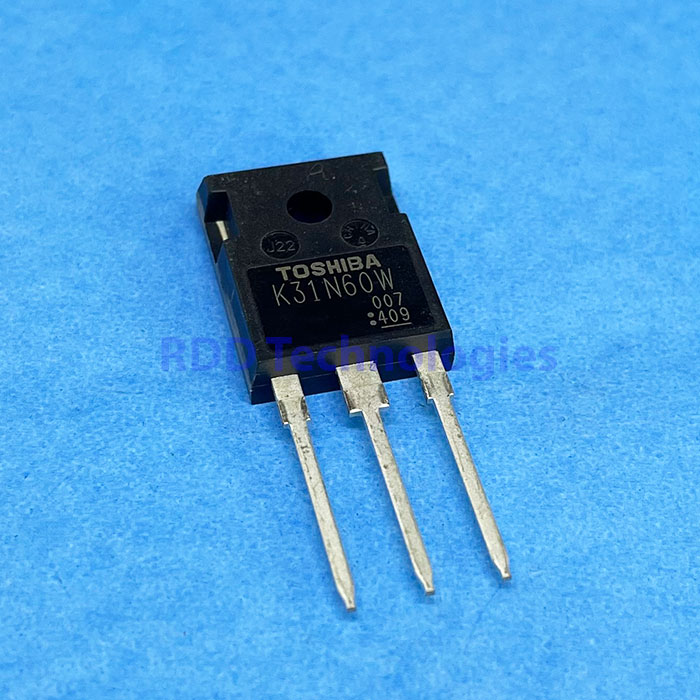

TK31N60W TOSHIBA TO-247

Name: TK31N60W TOSHIBA TO-247 - RDD Technologies
SKU: 16904-L62.13
Price: 115000 IDR
Availability: InStock

Rp115.000

MOSFETs DTMOSIV 600V 88mOhm 30.8A 230W 3000pF

Stok 10

SKU: 16904-L62.13 Kategori: MOSFET Tag: mosfet, tk331n60w

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Toshiba
Product Category:	MOSFETs
RoHS:
Technology:	Si
Mounting Style:	Through Hole
Package / Case:	TO-247-3
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds – Drain-Source Breakdown Voltage:	600 V
Id – Continuous Drain Current:	30.8 A
Rds On – Drain-Source Resistance:	73 mOhms
Vgs – Gate-Source Voltage:	– 30 V, + 30 V
Vgs th – Gate-Source Threshold Voltage:	3.7 V
Qg – Gate Charge:	86 nC
Minimum Operating Temperature:	– 55 C
Maximum Operating Temperature:	+ 150 C
Pd – Power Dissipation:	230 W
Channel Mode:	Enhancement
Tradename:	DTMOSIV
Packaging:	Tube
Brand:	Toshiba
Configuration:	Single
Fall Time:	8.5 ns
Height:	20.95 mm
Length:	15.94 mm
Product Type:	MOSFETs
Rise Time:	32 ns
Series:	TK31N60W
	30
Subcategory:	Transistors
Transistor Type:	1 N-Channel
Typical Turn-Off Delay Time:	165 ns
Typical Turn-On Delay Time:	70 ns
Width:	5.02 mm
Unit Weight:	0.211644 oz
