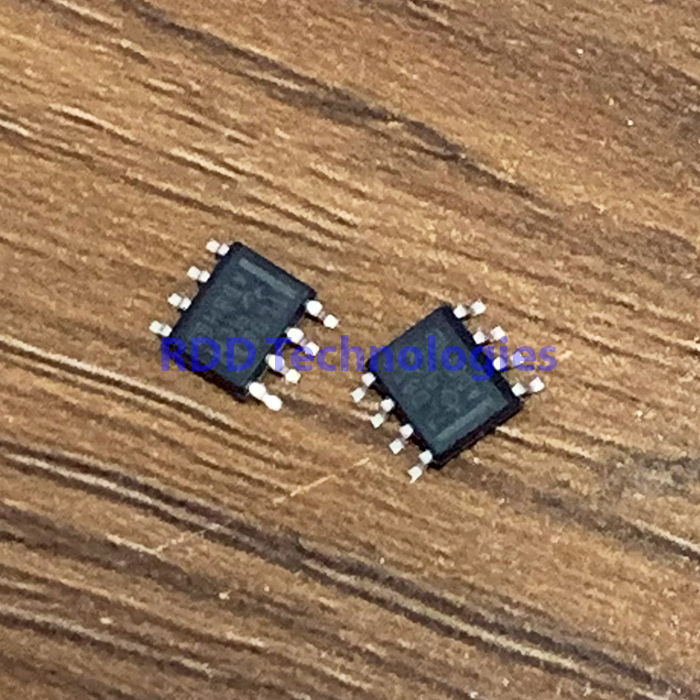

TL081CDR TI SOP8
Rp14.500
Operational Amplifiers – Op Amps JFET-Input Gen Purp Op Amp A 595-TL081CD A 595-TL081CD
Stok 30
| RoHS: | Yes |
| Number of Channels: | 1 Channel |
| GBP – Gain Bandwidth Product: | 3 MHz |
| SR – Slew Rate: | 13 V/us |
| Vos – Input Offset Voltage: | 15 mV |
| Ib – Input Bias Current: | 400 pA |
| Supply Voltage – Max: | 30 V |
| Supply Voltage – Min: | 7 V |
| Operating Supply Current: | 1.4 mA |
| Output Current per Channel: | 10 mA |
| CMRR – Common Mode Rejection Ratio: | 86 dB |
| en – Input Voltage Noise Density: | 18 nV/sqrt Hz |
| Package/Case: | SOIC-8 |
| Mounting Style: | SMD/SMT |
| Shutdown: | No Shutdown |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Brand: | Texas Instruments |
| In – Input Noise Current Density: | 10 fA |
| Input Type: | Rail-to-Rail |
| Maximum Dual Supply Voltage: | +/- 18 V |
| Minimum Dual Supply Voltage: | +/- 3.5 V |
| Technology: | BiFET |
| Unit Weight: | 72,600 mg |
