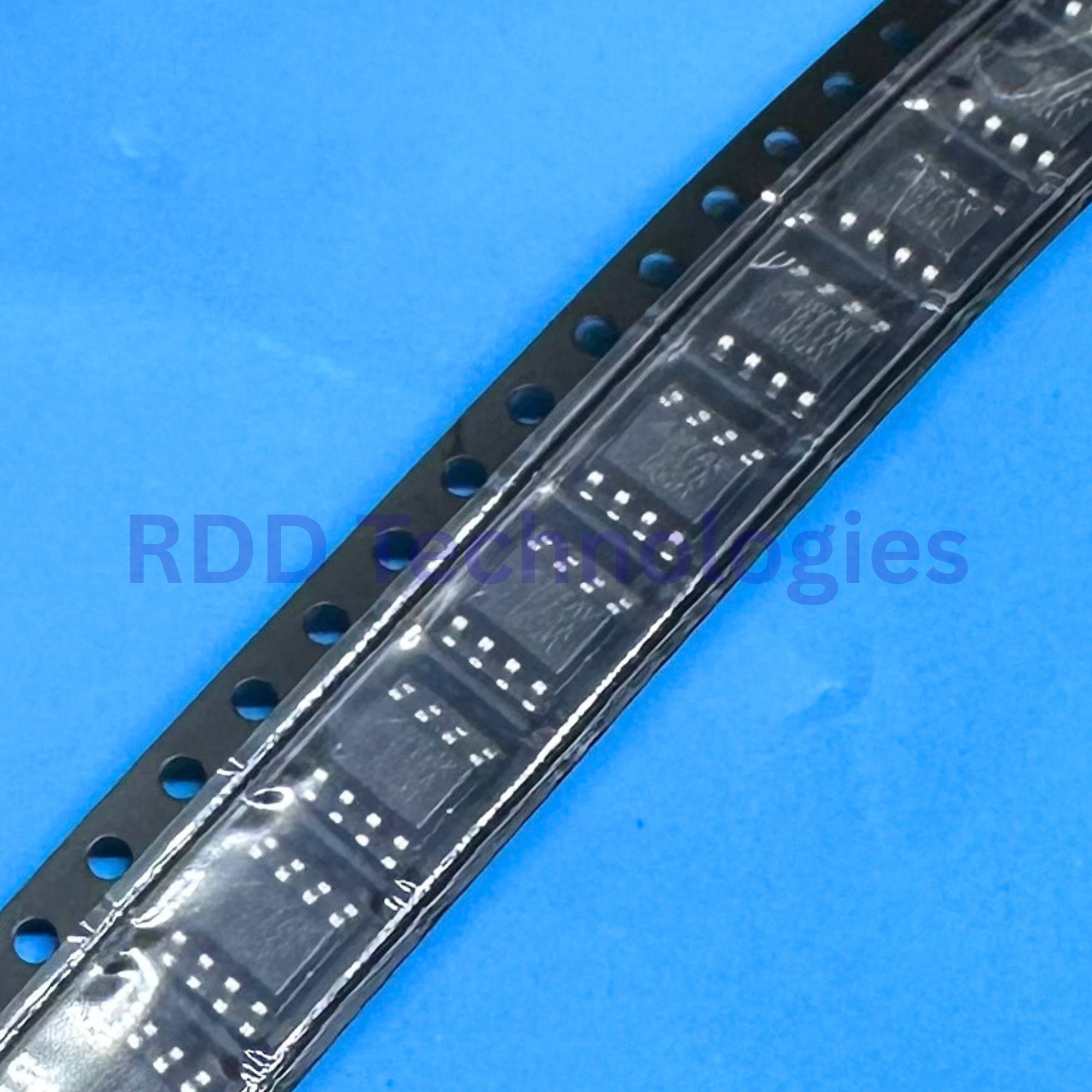

TP1562AL1-SR 3PEAK SOP8

Rp10.000

6MHz, 600μA, RRIO, Op Amps

Add to Wishlist
Add to Wishlist
SKU: 17173-L59.9 Kategori:
Manufacturer 3PEAK
Packaging SOIC-8
Number of Channels 2
Vos – Input Offset Voltage 3mV
Slew Rate 4.5V/us
Input Offset Current(Ios) 1pA
Operating Temperature -40℃~+125℃
Ib – Input Bias Current 1pA
Common Mode Rejection Ratio(CMRR) 100dB
Output Current 100mA
Input Offset Voltage Drift(Vos TC) 1uV/℃
Quiescent Current 600uA
Gain Bandwidth Product 6MHz
Input Voltage Noise Density 19nV/√Hz@1kHz
Rail to Rail Rail-to-Rail Input, Rail-to-Rail Output
Single Supply 2.5V~6V
