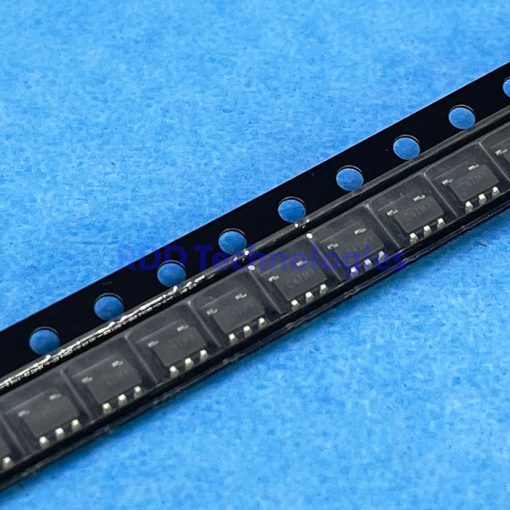

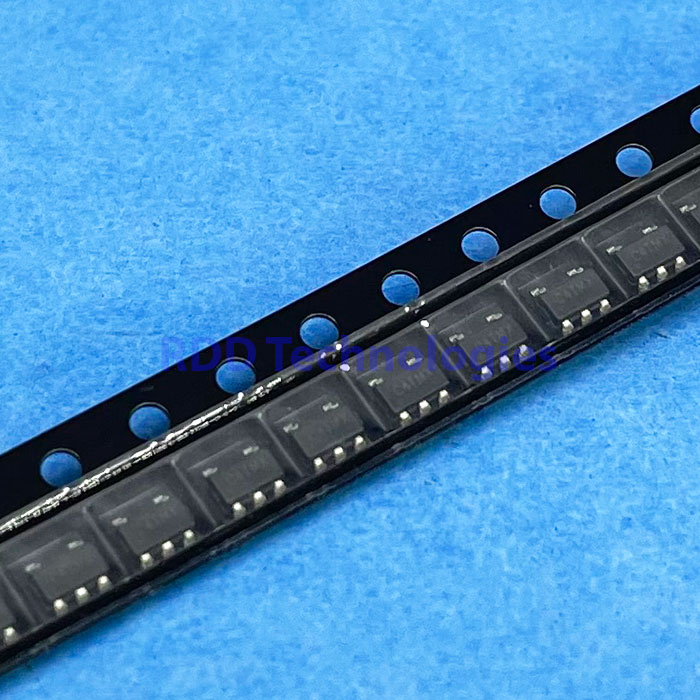

TP1941-TR 3-PEAK SOT-23-5
Rp15.000
68ns, 1.8V, Ultra-low Power, RRI, Push-Pull Output Comparators
Stok 60
| Manufacturer | 3PEAK |
| Packaging | SOT-23-5 |
| Output Type | Push-pull |
| Quiescent Current | 46uA |
| Output Mode | CMOS;TTL |
| Propagation Delay Time | 68ns |
| Operating Temperature | -40℃~+85℃ |
| Features | Built-in hysteresis;ESD protection |
| Dual Supply | 0.9V~2.75V;-2.75V~-0.9V |
| Rail to Rail | Rail-to-Rail Input, Rail-to-Rail Output |
| Common Mode Rejection Ratio(CMRR) | 70dB |
| Input Hysteresis Voltage (Vhys) | 6mV |
| Vos – Input Offset Voltage | 600uV |
| Ib – Input Bias Current | 6pA |
| Maximum Power Supply Range (Vdd-Vss) | 5.5V |
| Number of Channels | 1 |
| Input Offset Voltage Drift(Vos TC) | 0.3uV/℃ |
| Input Offset Current(Ios) | 4pA |
| Response Time (tr) | 5ns |
| Single Supply | 1.8V~5.5V |
