Name: TPS54060DGQR TI MSOP-10 - RDD Technologies
SKU: 15354-L7.20
Price: 75000 IDR
Availability: InStock

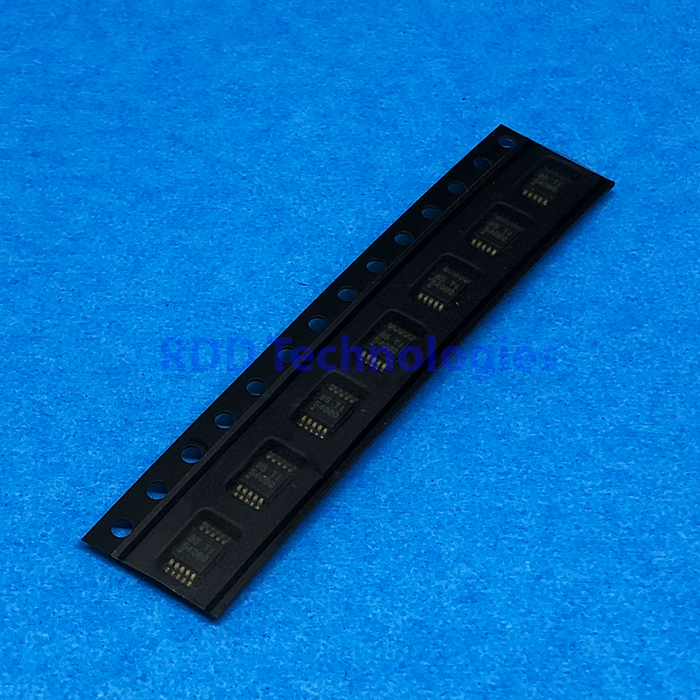

TPS54060DGQR TI MSOP-10

Rp75.000

Switching Voltage Regulators 3.5-60Vin 0.5A 2.5 M Hz Step Down Cnvtr A 595-TPS54060DGQ

Stok 6

Data tambahan dari pemasok
Function	Step-down (buck) DC-DC converter with integrated high-side MOSFET, Eco-mode pulse skipping
Input Voltage	3,5 – 60 V
Output Voltage	0,8 – 57 V, adjustable
Output Current	0,5 A
Switch Current Limit	0,94 A typ (0,6 A min)
Switch On-Resistance	200 mΩ typ, 410 mΩ max (VIN 12 V)
Reference Voltage	0,8 V (0,784 – 0,816 V)
Switching Frequency	100 kHz – 2,5 MHz, set by resistor; synchronizes to external clock 300 kHz – 2,2 MHz
Quiescent Current	116 µA typ, 136 µA max (non-switching)
Shutdown Current	1,3 µA typ, 4 µA max
Power Good	Open-drain, output within 94 % – 107 % of nominal
Thermal Shutdown	182 °C
Operating Temperature	-40 °C – +150 °C (junction)
Thermal Resistance	θJA 62,5 °C/W
Package / Case	HVSSOP-10 with PowerPAD (3 mm × 3 mm)
Mounting Style	Surface Mount
RoHS	Yes

Spesifikasi di atas mengacu datasheet Texas Instruments TPS54060, SLVS919C (September 2015). Informasi RoHS berasal dari pemasok.

Frekuensi switching dapat diatur dari 100 kHz hingga 2,5 MHz melalui resistor RT.

Untuk memastikan kode komponen yang tersedia sebelum membeli, silakan hubungi kami.

Sumber: Texas Instruments (ti.com).
