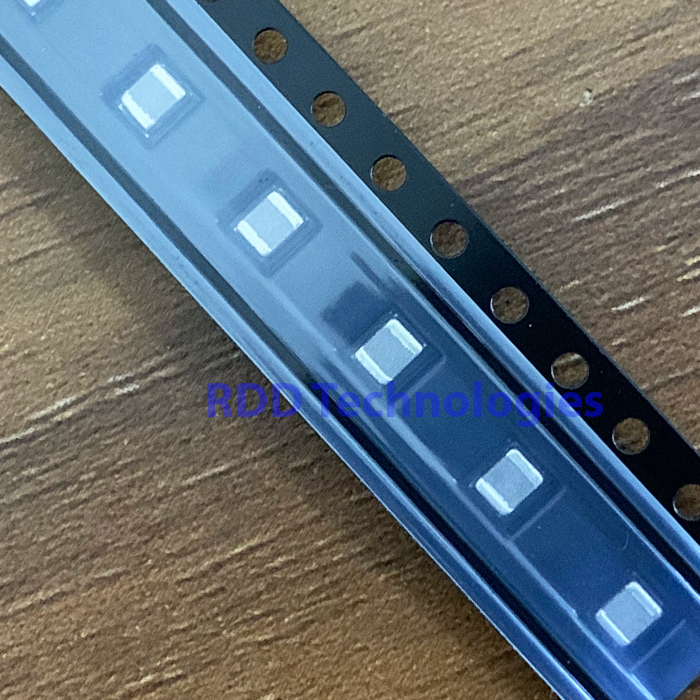

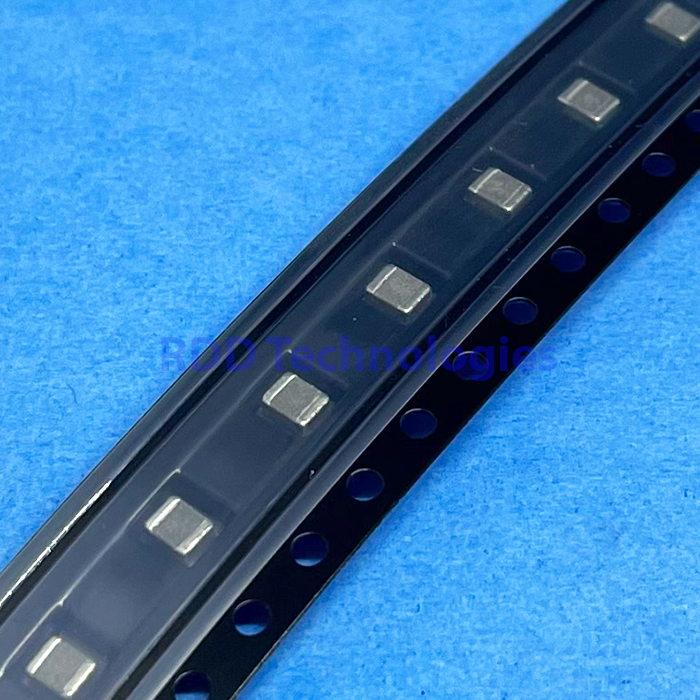

TPS82130SILR TI USiP-8
Rp110.000
TPS82130SILT
Switching Voltage Regulators 3-A 17V Step-down Converter Module with Integrated Inductor 8-uSiP -40 to 125
Stok 7
| RoHS: | Yes |
| Mounting Style: | SMD/SMT |
| Package/Case: | SIL-8 |
| Output Voltage: | 900 mV to 5 V |
| Output Current: | 3:00 AM |
| Number of Outputs: | 1 Output |
| Input Voltage MAX: | 17 V |
| Topology: | Buck |
| Input Voltage MIN: | 3 V |
| Switching Frequency: | 2 MHz |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 125 C |
| Series: | TPS82130 |
| Input Voltage: | 3 V to 17 V |
| Load Regulation: | 0.12 %/A |
| Operating Supply Current: | 20 uA |
| Operating Temperature Range: | – 40 C to + 125 C |
| Shutdown: | Shutdown |
| Supply Voltage – Min: | 3 V |
| Type: | Step Down Converter MicroSiP Module |
