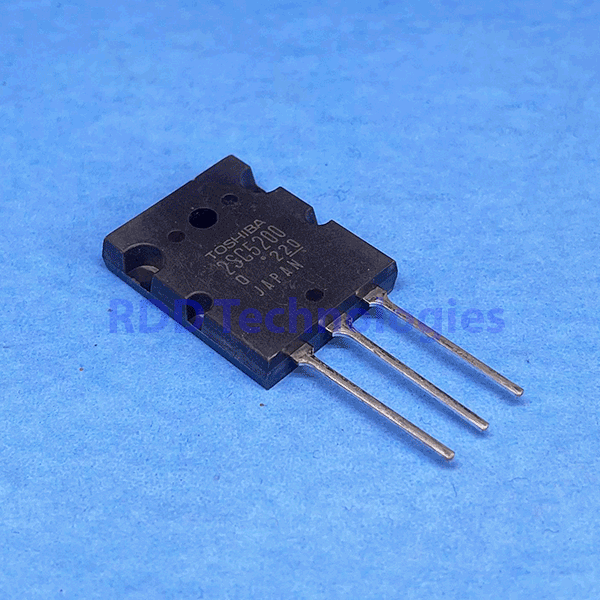

TR. 2SC5200-O(Q) TOSHIBA TO-3P

Name: TR. 2SC5200-O(Q) TOSHIBA TO-3P - RDD Technologies
Brand: TOSHIBA
SKU: 3201138-L14.46
Price: 75000 IDR
Availability: InStock

Rp75.000

2SC5200-O(Q)
Bipolar Transistors – BJT NPN 230V 15A

Stok 50

SKU: 3201138-L14.46 Kategori: BJT Brand: TOSHIBA

RoHS:	Yes
Mounting Style:	Through Hole
Package/Case:	TO-3P
Transistor Polarity:	NPN
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	230 V
Collector- Base Voltage VCBO:	230 V
Emitter- Base Voltage VEBO:	5 V
Maximum DC Collector Current:	15 A
Gain Bandwidth Product fT:	30 MHz
Maximum Operating Temperature:	+ 150 C
DC Collector/Base Gain hFE Min:	80
Height:	26 mm
Length:	20.5 mm (Max)
Minimum Operating Temperature:	– 55 C
Pd – Power Dissipation:	150000 mW
Width:	5.2 mm (Max)
Unit Weight:	6.756 g

TR. 2SC5200-O(Q) TOSHIBA TO-3P

Stok 50
