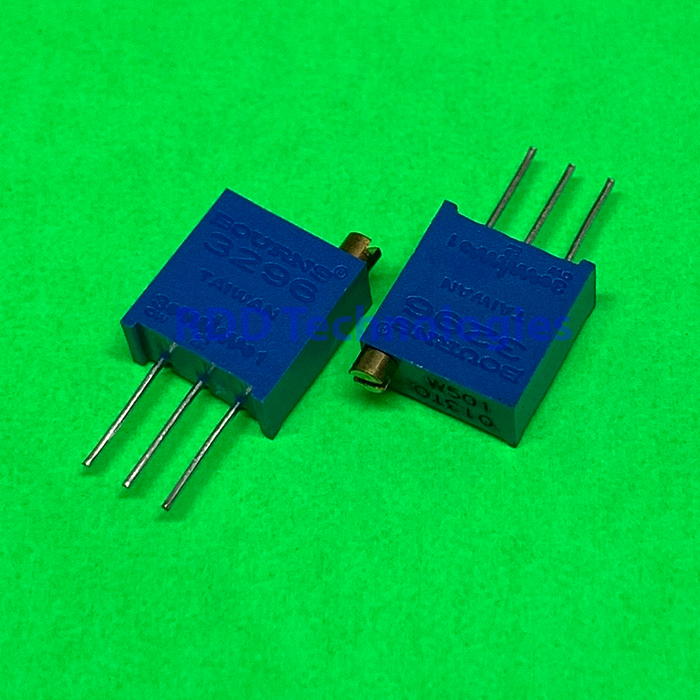

Trimmer 500 Ohm Multiturn BOURNS 3296W-1-501LF

Name: Trimmer 500 Ohm Multiturn BOURNS 3296W-1-501LF - RDD Technologies
SKU: 16301-L60.1
Price: 15000 IDR
Availability: InStock

Rp15.000

Trimmer Resistors – Through Hole 3/8IN 500 OHM Sealed Vertical Adjust

SKU: 16301-L60.1 Kategori: Trimmer Potentiometer

RoHS:	Yes
Termination Style:	PC Pin
Number of Turns:	25 Turn
Resistance:	500 Ohms
Adjustment:	Top Cross
Power Rating:	500 mW (1/2 W)
Voltage Rating:	300 V
Tolerance:	10%
Temperature Coefficient:	100 PPM / C
Orientation:	Vertical Adjustment
Minimum Operating Temperature:	– 55 C
Maximum Operating Temperature:	+ 125 C
Brand:	Bourns
Element Type:	Cermet
Height:	10.03 mm
Length:	9.53 mm
Mounting Style:	PCB Mount
Type:	0.375 in Square Trimmer Resistor
Width:	4.83 mm
Unit Weight:	850 mg

Trimmer 500 Ohm Multiturn BOURNS 3296W-1-501LF
