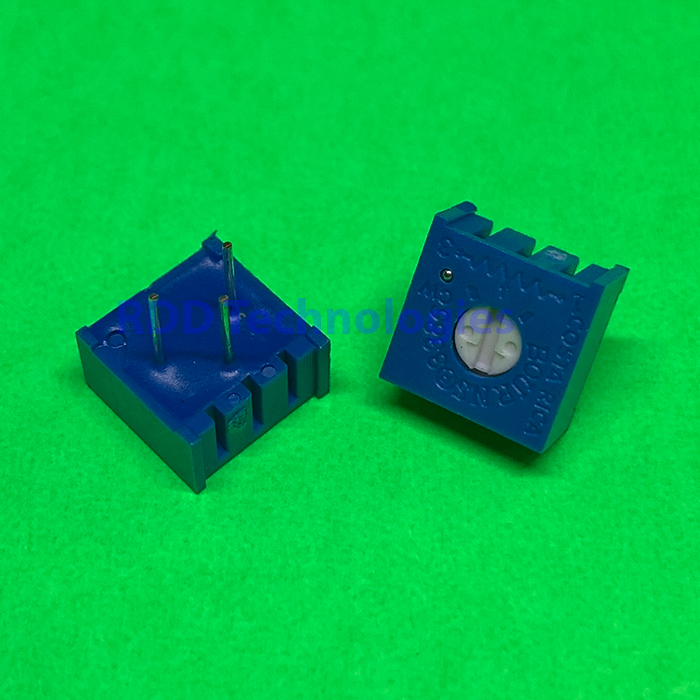

Trimmer 500 Ohm Singleturn BOURNS 3386P-1-501LF

Name: Trimmer 500 Ohm Singleturn BOURNS 3386P-1-501LF - RDD Technologies
SKU: 16302-L60.2
Price: 15000 IDR
Availability: InStock

Rp15.000

Trimmer Resistors – Through Hole 3/8IN 500 OHMS 10% 0.5Watts Square

SKU: 16302-L60.2 Kategori: Trimmer Potentiometer

RoHS:	Yes
Termination Style:	PC Pin
Product:	Single Turn
Number of Turns:	1 Turn
Resistance:	500 Ohms
Adjustment:	Top Slot
Power Rating:	500 mW (1/2 W)
Voltage Rating:	300 V
Tolerance:	10%
Temperature Coefficient:	100 PPM / C
Orientation:	Vertical Adjustment
Minimum Operating Temperature:	– 55 C
Maximum Operating Temperature:	+ 125 C
Brand:	Bourns
Element Type:	Cermet
Height:	4.83 mm
Length:	9.53 mm
Mounting Style:	PCB Mount
Type:	Single-Turn 3/8 in Square Trimmer Resistor
Width:	9.53 mm
Unit Weight:	0.029983 oz

Trimmer 500 Ohm Singleturn BOURNS 3386P-1-501LF
