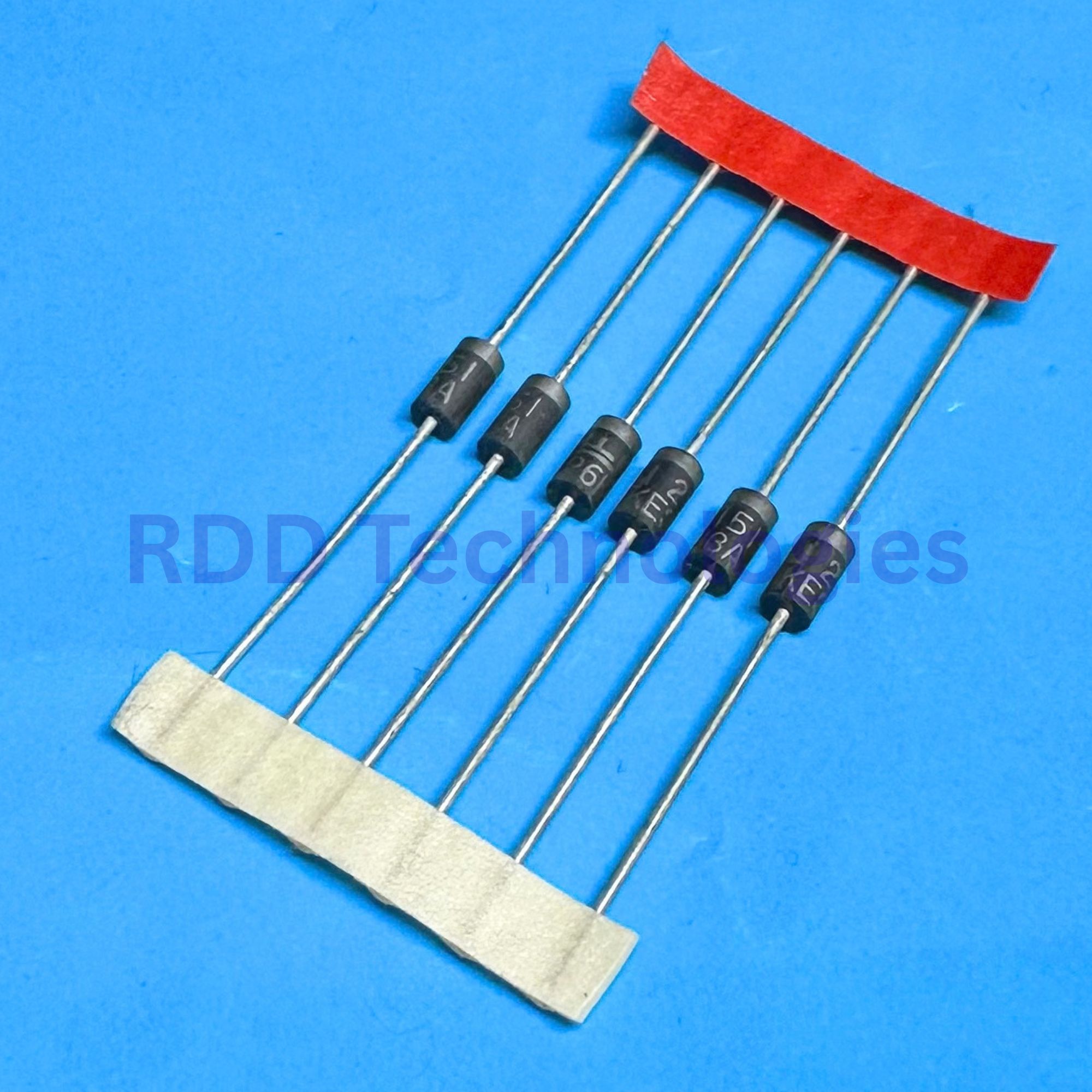

TVS DIODE P6KE33A LITTELFUSE DO204AC
Rp17.500
ESD Protection Diodes / TVS Diodes 28.2Vr 600W 13.2A 5% Uni-Directional
| RoHS: | Yes |
| Polarity: | Unidirectional |
| Number of Channels: | 1 Channel |
| Working Voltage: | 28.2 V |
| Termination Style: | Axial |
| Clamping Voltage: | 45.7 V |
| Breakdown Voltage: | 31.4 V |
| Package/Case: | DO-15 (DO-204AC) |
| Ipp – Peak Pulse Current: | 13.3 A |
| Pppm – Peak Pulse Power Dissipation: | 600 W |
| Vesd – Voltage ESD Contact: | 30 kV |
| Vesd – Voltage ESD Air Gap: | 30 kV |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 175 C |
| Brand: | Littelfuse |
| Pd – Power Dissipation: | 5 W |
| Vf – Forward Voltage: | 3.5 V |
| Unit Weight: | 425,240 mg |
