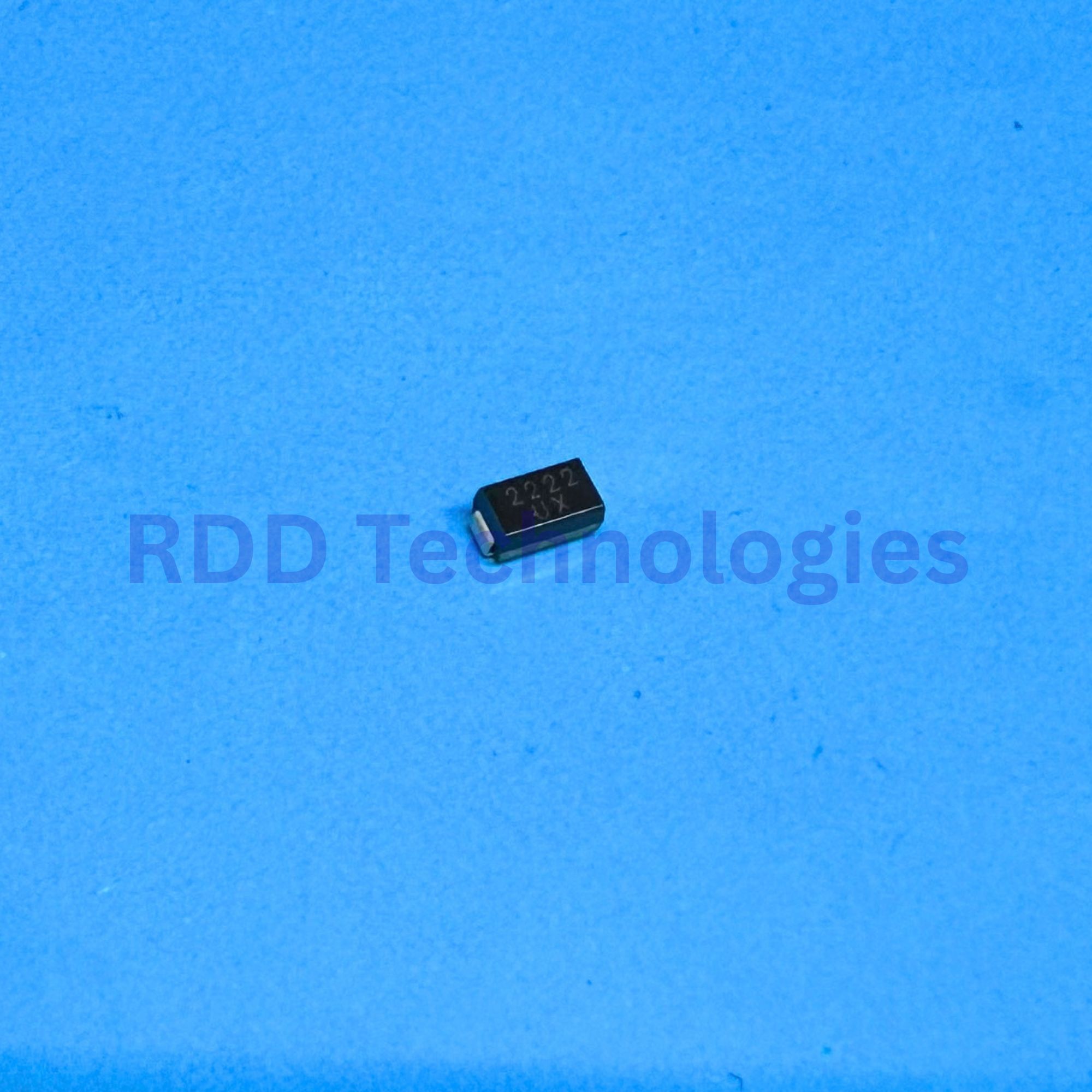

TVS DIODE SMAJ22CA SUMMATE SMA

Name: TVS DIODE SMAJ22CA SUMMATE SMA - RDD Technologies
SKU: 17956
Price: 1500 IDR
Availability: InStock

Rp1.500

ESD Protection Diodes / TVS Diodes 400W, 25.7V, 5%, Bidirectional, TVS

SKU: 17956 Kategori: Diodes

RoHS:	Yes
Polarity:	Unidirectional
Number of Channels:	1 Channel
Working Voltage:	22 V
Termination Style:	SMD/SMT
Clamping Voltage:	35.5 V
Breakdown Voltage:	24.4 V
Package / Case:	SMA (DO-214AC)
Ipp – Peak Pulse Current:	11.3 A
Pppm – Peak Pulse Power Dissipation:	400 W
Minimum Operating Temperature:	– 55 C
Maximum Operating Temperature:	+ 150 C
Pd – Power Dissipation:	1 W
Vf – Forward Voltage:	3.5 V
Unit Weight:	0.002258 oz

TVS DIODE SMAJ22CA SUMMATE SMA
