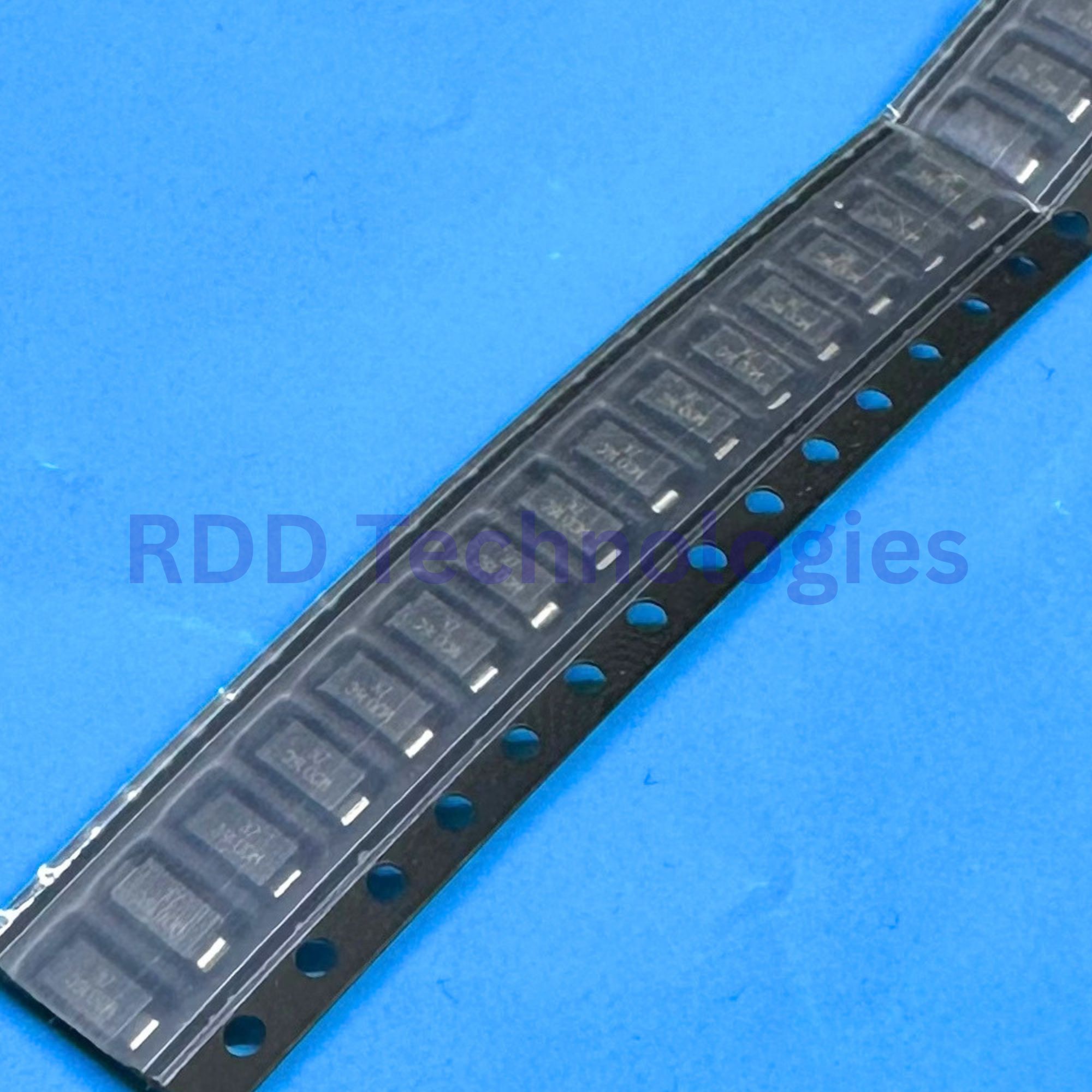

TVS DIODE SMAJ60CA Brightking Elec (TAIWAN) SMA
Rp2.000
ESD Protection Diodes / TVS Diodes 400W 60V 5% Bi-Directional
| RoHS: | Yes |
| Polarity: | Bidirectional |
| Number of Channels: | 1 Channel |
| Working Voltage: | 60 V |
| Termination Style: | SMD/SMT |
| Clamping Voltage: | 96.8 V |
| Breakdown Voltage: | 66.7 V |
| Package / Case: | SMA (DO-214AC) |
| Ipp – Peak Pulse Current: | 4.1 A |
| Pppm – Peak Pulse Power Dissipation: | 400 W |
| Vesd – Voltage ESD Contact: | 30 kV |
| Vesd – Voltage ESD Air Gap: | 30 kV |
| Minimum Operating Temperature: | – 65 C |
| Maximum Operating Temperature: | + 150 C |
| Pd – Power Dissipation: | 3.3 W |
| Vf – Forward Voltage: | 3.5 V |
| Unit Weight: | 0.002152 oz |
