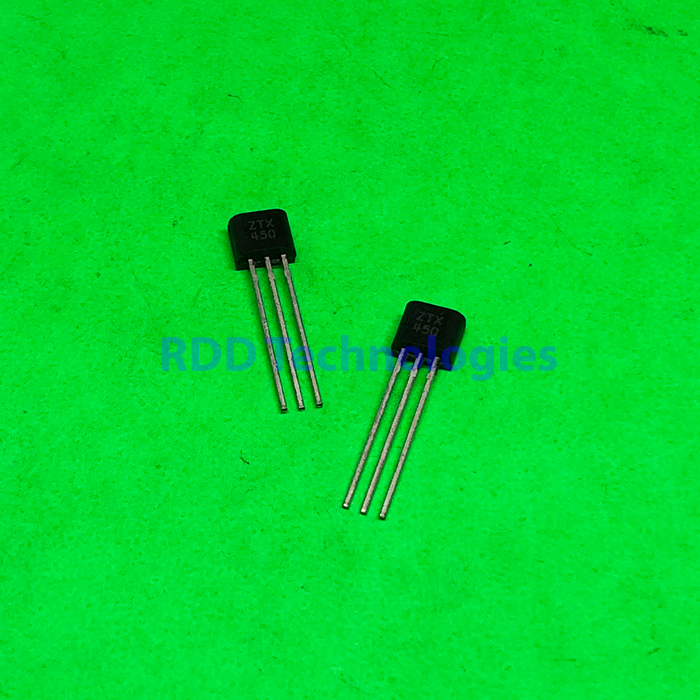

ZTX450 ZETEX TO-92

Name: ZTX450 ZETEX TO-92 - RDD Technologies
Brand: ZETEX / DIODES INC
SKU: 15100521-L18.15
Price: 17500 IDR
Availability: InStock

Rp17.500

ZTX450
NPN SILICON PLANAR MEDIUM POWER TRANSISTORS

Stok 39

SKU: 15100521-L18.15 Kategori: BJT Brand: ZETEX / DIODES INC

Configuration:	Single
Transistor Polarity:	NPN
Collector- Base Voltage VCBO:	60 V
Collector- Emitter Voltage VCEO Max:	45 V
Emitter- Base Voltage VEBO:	5 V
Maximum DC Collector Current:	1A
Gain Bandwidth Product fT:	150 MHz
Maximum Operating Temperature:	+ 150 C
Package / Case:	TO-92
DC Collector/Base Gain hfe Min:	100 at 150 mA at 10 V, 15 at 1 A at 10 V
DC Current Gain hFE Max:	100 at 150 mA at 10 V
Maximum Power Dissipation:	1 W
Minimum Operating Temperature:	– 55 C

ZTX450 ZETEX TO-92

Stok 39
